The New and Improved iPRECIO SMP-310R Pump for Mice

iPRECIO logo with symbol
iPRECIO Programmable Pump SMP-310R mouse model

The new iPRECIO SMP-310R pump is ideal for use in mice and larger laboratory animals. It has been improved with longer batter life, faster programming times and a magnetic on/off switch!

Request Prices

Programmable

A total of 15 steps with repeat function allows both complex and simple infusion profiles to be programmed.

Refillable

The pump reservoir can be refilled after implantation via percutaneous access.

Wireless

SMP-310R pumps are programmed by wireless communication via the IMS-310R iPRECIO Management system.

Implantable

The pump is fully implanted subcutaneously in small laboratory animals weighing at least 23-25 grams.

iPRECIO SMP-301R Pump with its labeled parts

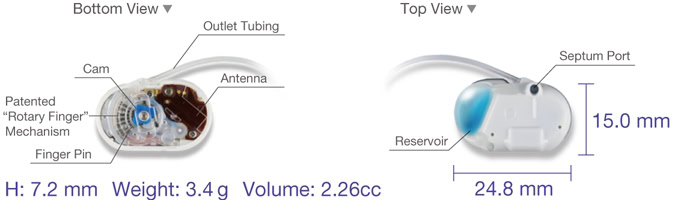

schematic of the top and bottom of the iPRECIO SMP-310R

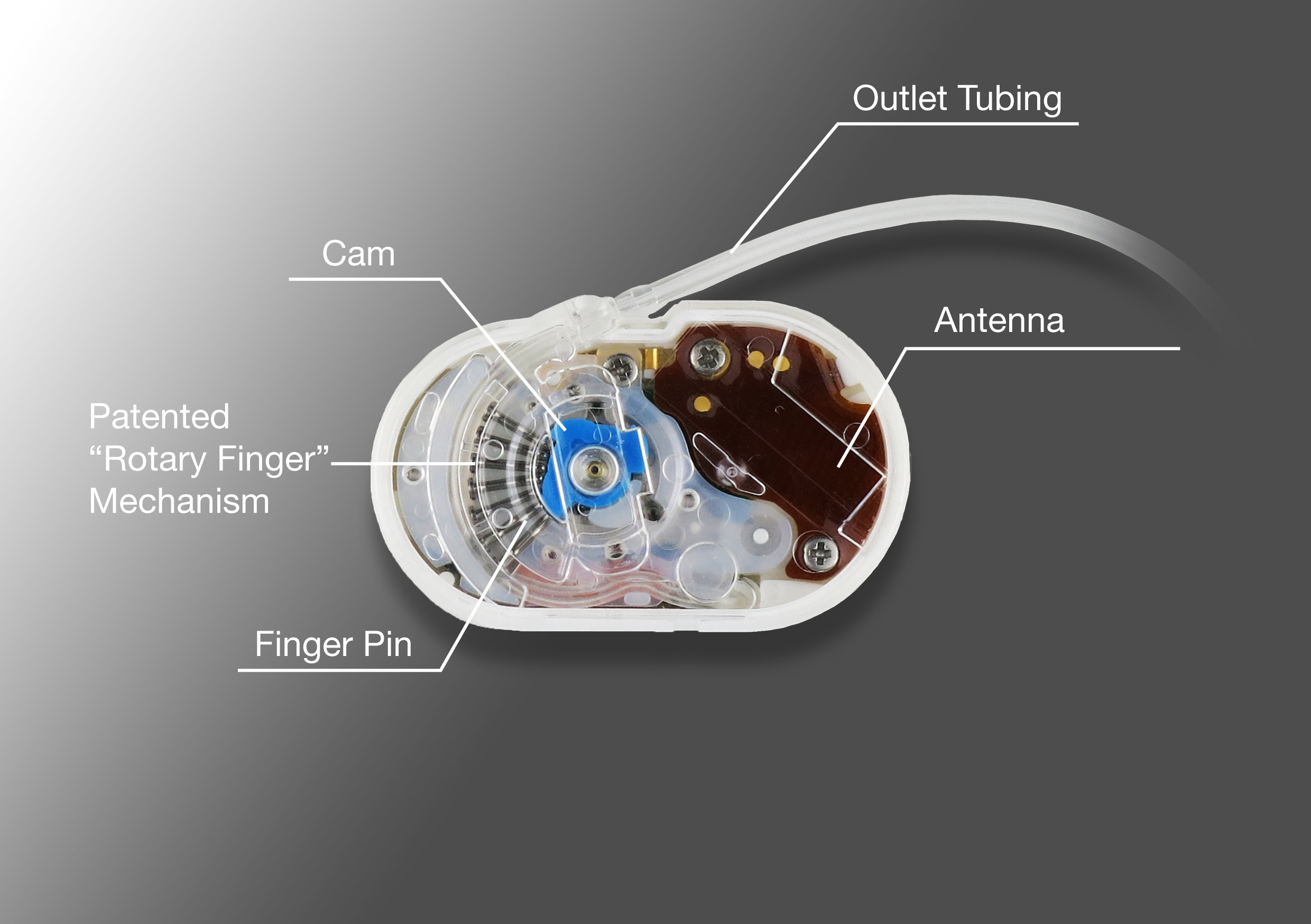

Schematic of the iPRECIO SMP-310R pump

Battery Life

The battery life is up to 67 days at a flow rate of 0.1 µL/hr continuously. Battery life is calculated and estimated using the iPRECIO Software, and it is dependent on pump switch on date, KVO duration, infusion profile and communication availability selected. Exact battery life durations and calculations are managed by the iPRECIO Software. The battery life is maximized when the pump is programmed to none or 0 communication mode. When communication availability is set to 1 minute, maximum responsiveness is selected and this gives the lowest battery life.

  • Communication availability / Logging interval
  • Flow rate (μL/hr)
  • 0.1 μL/hr
  • 0.5 μL/hr
  • 1.0 μL/hr
  • 5.0 μL/hr
  • 8.0 μL/hr
  • Every minute
  • Time (days)
  • 6.5 days
  • 6.5 days
  • 6.4 days
  • 5.7 days
  • 5.3 days
  • Every 2 hours
  • Time (days)
  • 22.0 days
  • 19.8 days
  • 17.8 days
  • 11.1 days
  • 8.6 days
  • Every 6 hours
  • Time (days)
  • 44.3 days
  • 37.0 days
  • 30.9 days
  • 14.3 days
  • 10.1 days
  • Every 24 hours
  • Time (days)
  • 64.3 days
  • 50.6 days
  • 40.0 days
  • 14.9 days
  • 10.1 days
  • None
  • Time (days)
  • 67.8 days
  • 52.8 days
  • 41.3 days
  • 15.1 days
  • 10.2 days

iPRECIO SMP-310R pumps (5 pcs/box)

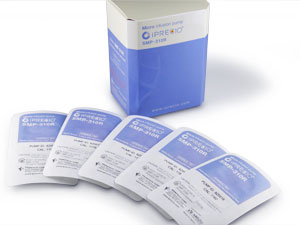

box for iPRECIO SMP-310R with the five pump blister packs laid next to it

Sterilized Blister Package

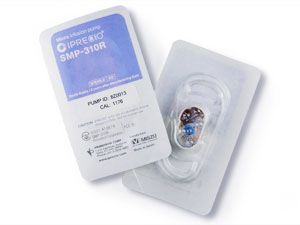

front and back of iPRECIO SMP-310R blister package with pump inside

The iPRECIO SMP-310R Pump

Watch this video to learn about the iPRECIO SMP-310R pump technology and applications. (Note: the video makes reference a previous version of the iPRECIO pump for mice (SMP-300). The SMP-310R been improved, but most information shown on the video is still relevant.) Contact us for more information.

Request Information

The iPRECIO® IMS-310R Management System

The iPRECIO® Management System for SMP-310R pumps consists of:

  • iPRECIO Management Software Installation CD
  • Data Communication Device (UCD-310R)
  • iPRECIO SMP-310R User Manual
SMP-310R and IMS-310R User Manual
iPRECIO UCD
  • iPRECIO Management Software (IMS-310R)
  • SYSTEM FEATURES
  • Study Management
  • User Account
  • Automated Pump Recognition
  • PUMP ROGRAMMING VIA SOFTWARE
  • Programmable Parameters
  • Programming Infusion Steps
  • Automatic Battery Calculation of Usage and Infusion Duration
  • Dead Volume Setting
  • Flushing Setting
  • Infusion Schedule Management and Monitoring
  • Log
  • PC OS Compatible
  • Study Information, Animal Information, Group Information
  • Administrator Information, Register and manage user account name and password
  • Pump's ID and Calibration Factor are recognized by wireless data communication
  • Start day / time; Flow Rate or Dose Setting; Duration of infusion
  • You can configure a maximum of 15 flow rate (or volume) steps as needed. Grouping of multiple steps and repeat function is also available.
  • When programming the infusion protocol, the remaining battery life (time) and infusion duration (start and end time of each steps) shows automatically on the window.
  • Dead volume of the catehter is calculated using values from catheter size (diameter) and length, or you can enter the actual volume measured
  • Available KVO Setting (Flow Rate: xx μL/hr, Duration：xx days)
    You can upload default values or set dead volume and flow rate for each study.
  • Manage infusion volume and schedule; manage refilling schedule; set threshold for remaining reservoir volume
  • You can export study data and infusion log in CSV format at the end of the study. The infusion log is transfered to the software by wireless data communication during infusion.
  • Windows 7 Professional or higher, Windows 10 Pro/Enterprice/Education
  • iPRECIO Data Communication Device (IMS-310R)
  • Interface
  • Communication with Pump
  • Wireless Frequency
  • Power Supply
  • Size / Weight
  • Accessories
  • Ethernet (crossed cable). Operates via intranet/internet by setting fixed IP address with the data communication device.
  • Wireless Communication
    (Not broadband: Individual communication between data communication device and pumps.)
  • 923.1 MHz (North America / FCC); 865.5 MHz (Europe / CE)
  • USB adapter included (Weight: 35g) (Length of cable: 1.1 m) DC Output: 5V 0.5A
  • 145(L) x 95 (W) x 55(H) mm / TBD
  • 1 Ethernet cable (3m)
    1 USB DC adapter cable (1.1m)
