iPRECIO logo with symbol
iPRECIO Programmable Pump SMP-200

The iPRECIO SMP-200 pump uses a patented, microprocessor controlled peristalsis mechanism for accurate controlled flow. This implantable infusion pump is for ideal for use in rats and larger laboratory animals.

iPRECIO SMP-200 Pump with its labeled parts

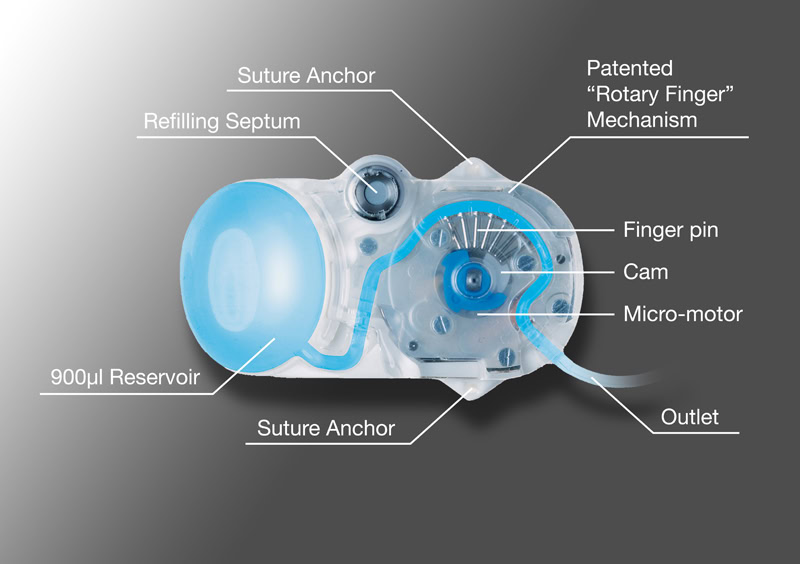

iPrecio Pump Front Caption

Top view of iPRECIO® SMP-200 pump

iPrecio Pump Back Caption

Bottom view of iPRECIO® SMP-200 pump

Battery Life

The battery life for the iPRECIO SMP-200 pump is 6 months at a continuous flow rate of 1.0 μL/hr. The estimated battery life can be confirmed with the iPRECIO Management Software when programming.

  • Flow Rate
  • 30.0 μL/hr
  • 19.0 μL/hr
  • 8.5 μL/hr
  • 1.0 μL/hr
  • Infusion Time (h)
  • 196 hr
  • 307 hr
  • 669 hr
  • 4,328 hr
  • Days (approx)
  • 1 week
  • 1.8 weeks
  • 1 month
  • 6 months
  • Total Volume
  • 5.8 ml
  • 5.8 ml
  • 5.6 ml
  • 4.3 ml

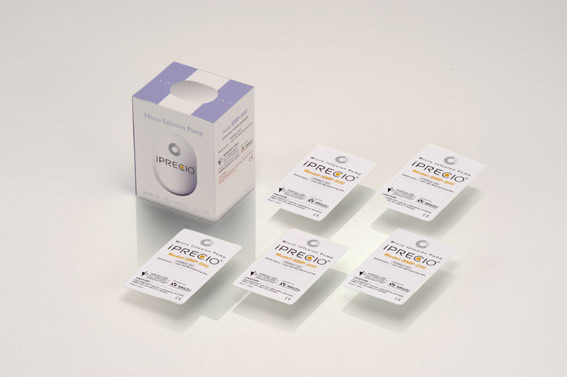

iPRECIO pumps (5  pcs/box)

box for iPRECIO SMP-200 with the five pump blister packs laid next to it

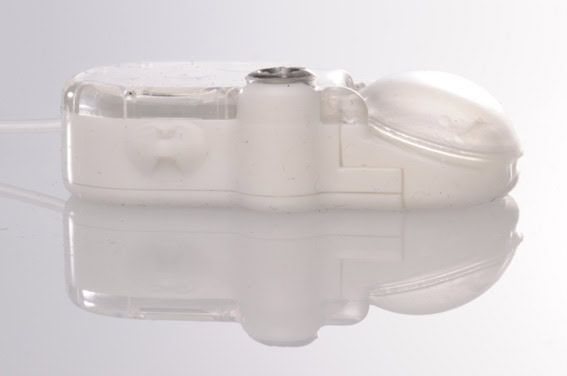

SMP-200 side view

iPRECIO Programmable Pump SMP-200 side view

Sterilized Blister Package

front and back of iPRECIO SMP-200 blister package with pump inside

The iPRECIO SMP-200 Pump

Watch this video to learn about the iPRECIO SMP-200 pump technology and applications.

Request Information

The iPRECIO® IMS-200 Management System

The iPRECIO® Management System for SMP-200 pumps consists of:

  • iPRECIO Management Software Installation CD
  • Data Communication Device (UCD-200)
  • USB cable
  • iPRECIO SMP-200 User Manual
  • 2 AAA batteries
iPrecio Management System
  • iPRECIO Management Software (IMS-200)
  • SYSTEM FEATURES
  • Stores Study Data
  • Automatically recognizes pump ID / calibration factor
  • Programs pump via PC
  • Allows off-line management of infusion
  • Allows for upload of pump’s log
  • Recalibrates iPRECIO pump
  • PROGRAMMABLE PARAMETERS
  • Pump start
  • Pump stop
  • Infusion mode
  • Flow rate mode
  • Dead volume
  • Flushing
  • Study Name, Number/ID, Date, Experiment Period, Section Name, Operator, Number of Groups/Animals, Animal Species, Strain, Age, Compound Name/ID, Concentration, Buffer Name, Administration Route, etc.
  • Manage schedule (such as solution exchanges, refill date/time), alarms, elapsed time, volume infused, etc
  • Confirms accurate performance at end of study
  • Day and time
  • Day and time
  • 1. Instant Infusion Mode
    2. Post Recovery (Delayed) Infusion Mode
  • 1. Constant Flow Rate Mode
    2. Variable Flow Rate Mode (maximum of 10 flow rate steps). (Repeat Modecan be selected for up to 2,500 flow rate steps.)
  • Using either catheter diameter and length or actual volume
  • Flushing rate and timing of replacement
  • iPRECIO Data Communication Device (IMS-200)
  • Interface
  • Communication with Pump
  • Power Supply
  • Size / Weight
  • Accessories
  • USB / Serial Interface
  • IR Communication
  • PC USB or AAA batteries
  • 120 (L) x 67 (W) x 35 (H) mm / 147g (including battery)
  • 1 USB cable (1m), 2 AAA batteries
