iPRECIO® enables researchers to set infusion profiles prior to the start of the study. With the user friendly iPRECIO Management System software, the start time/day, stop time/day, flow rate, and infusion duration can all be programmed by the user. The complete infusion protocol is downloaded to the pump’s flash memory via USB (iPRECIO SMP-200) or wireless communication* (iPRECIO SMP-310R). Once implanted, the pumps will deliver according the the programmed infusion profile.

*Note that iPRECIO SMP-310R pumps are pre-programmed via wireless communication. In ideal conditions with a small number pumps, in vivo reprogramming is feasible (Ideal conditions: communication mode set to “every minute”, low external wireless interference, pumps in close proximity to programming station).

iPRECIO pumps facilitate complex dosing applications

  • Constant/variable delivery
  • Multiple bolus dosing
  • Escalating drug administration
  • Surgical recovery and washout periods
  • Circadian rhythm infusion

Programmable Flow Rate options include

  • Constant Flow Rate Mode: Configure one constant flow rate between 0–30 µl/hr (SMP-200), or 0–10 µl/hr (SMP-310R)
  • Variable Flow Rate Mode: Configure up to 10 (SMP-200) or 15 (SMP-310R) discrete infusion “steps”
  • Recovery Mode: Incorporate a post surgical recovery period. Drug infusion can be programmed to start at any time to allow the animal to recover from surgery
  • Repeat Mode: This mode enables further sophistication in that the 10 (SMP-200) or 15 (SMP-310R) infusion steps can be programmed within one or several repeat loops (5 loops maximum). Each loop may be repeated 2-250 times (subject to battery life).

iPRECIO SMP-200

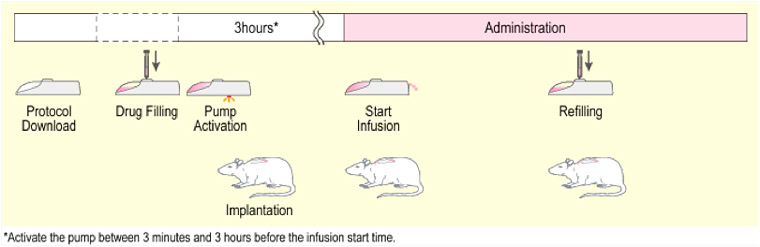

Instant Infusion Mode

Start drug infusion instantly following pump activation, according to the pre-programmed protocol .

Mouse Infusion

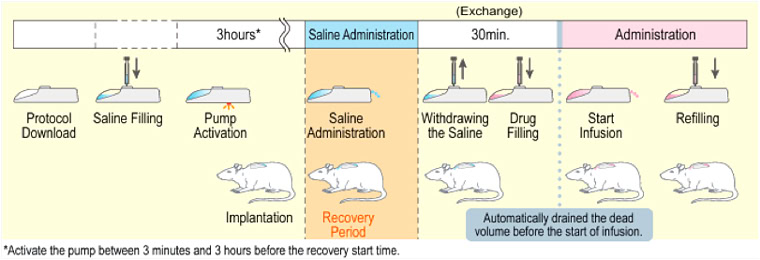

Post Recovery (Delayed) Infusion Mode

Start drug infusion after reservoir contents are exchanged percutaneously following surgical implantation recovery period according to pre-programmed protocol. The pump is set to infuse saline or vehicle during the recovery period.

Post Recovery

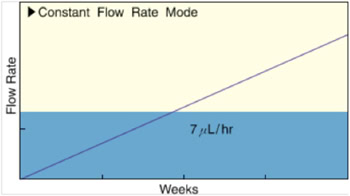

Constant Flow Rate

Configure one constant flow rate during infusion period.

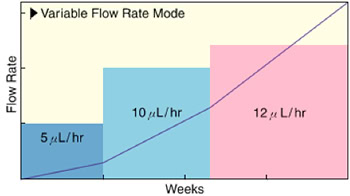

Variable Flow Rate

Variable Flow Rate

Configure up to 10 discrete infusion “steps” between 1μL/hr and 30μL

Variable Flow Rate

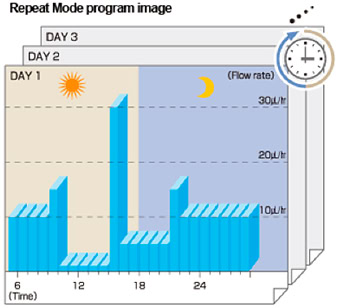

Repeat Mode

Repeat Mode allows the 10 flow steps to be used in a more sophisticated infusion protocol in which up to 2500 steps* (10 steps x 250 times repeated) may be programmed. Complex infusion protocols may be achieved, such as those required for circadian rhythm dosing, multiple bolus dosing (3-4 times per day) or dose escalation studies.
* (subject to battery life)

Repeat Mode

iPRECIO SMP-310R

Flow Rates

Each flow profile may contain up to 15 doses or flow rate steps. A single step means a fixed continuous dose or flow-rate for the study duration. A more complex infusion profile will contain more than 1 step and may contain up to 15 steps.

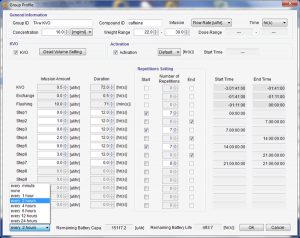

examples of the different programming options for the iPRECIO SMP-310R

In addition to the 15 steps, Repeat Mode may be used. Repeat Mode allows more complex infusions, such as circadian rhythm, modified release, chrono release and pulsative release to be programmed for daily/weekly/etc repeats.

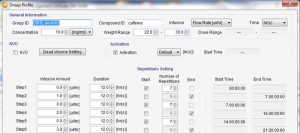

repeat mode programmed on the iPRECIO SMP-310R

Keep Vein Open (KVO) Function

This function is used for dead volume calculation and flushing. A recovery period may be programmed into the flow profile using the KVO checkbox and Dead Volume Setting Options. A recovery period may be programmed using the KVO function where saline or vehicle is infused to ensure catheter patency. During this time, the animal recovers from the implantation surgery.

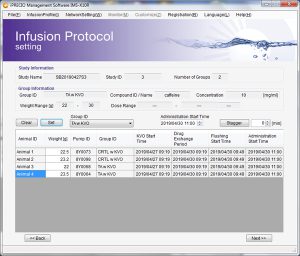

infusion protocol with KVO setting for iPRECIO SMP-310R

When using KVO mode, a function of the software allows to calculate the total dead volume of the catheter and pump to ensure that the test article (TA) or drug hits the animal at the programmed start time. Flushing of the dead volume maybe programmed by the user and the software automatically calculates when to exchange saline/vehicle to TA/drug.

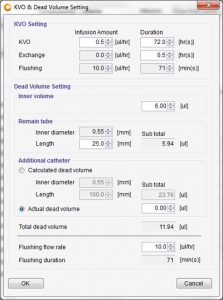

KVO and dead volume programming screen for iPRECIO SMP 310R

Programming Workflow

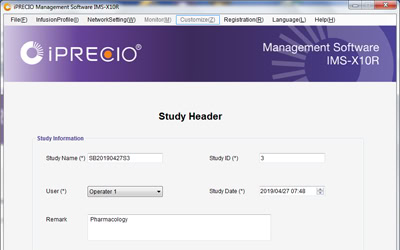

Step 1 – Start of Study Design

Enter and save the study name, ID , user and date

step 1 of programming the iPRECIO SMP-310R

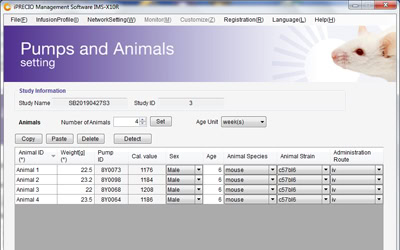

Step 2 – Pumps and Animal Setting

Enter the total number of animals to be used in the study (each associated with an animal ID). Enter animal- and study-specific Information, including weight, sex, species, strain, administration site, etc.

step 2 of programming the iPRECIO SMP-310R

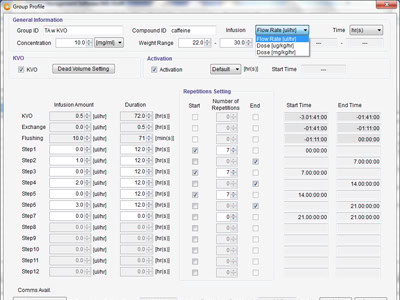

Step 3 – Infusion Profile (Group ID), including KVO Setting

If a recovery period following surgery is desired, KVO setting maybe used to maintain catheter patency. A dead volume flush may also be programmed in the next step. Following these steps, Drug Administration Protocol may be programmed (continuous, intermittent, circadian & bolus). Everything required is programmed into the Infusion Profile (Group ID).

step 3 of programming the iPRECIO SMP-310R

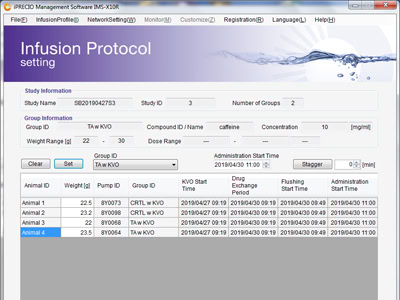

Step 4 – Infusion Protocol Setting

This screen allows you to program the drug administration start time. It also includes the parameters for flushing the dead volume, and the pump start time based on calculated dead volume, flushing flow-rate and exchange stop time.

This screen also allows the user to program the “Communications Available” (Comms Avail) setting in Group Profile/Infusion Protocol.

step 4 of programming the iPRECIO SMP-310R

Monitoring Function

Monitor Function allows the user to follow the infusion profile in detail. Refill dates/exchange dates and alarms are also managed and displayed here.

iPRECIO SMP-310R program monitoring screen
